1 | 名称 Description | 全电动托盘搬运车 | ||
2 | 型号 Model | FE15 | FE25 | FE30 |
3 | 最大起升重量Kg Load capacity | 1500 | 2500 | 3000 |
4 | 载荷中心mm Load center | 600 | 600 | 600 |
5 | 最大起升高度mm Max. lifting height | 200 | 200 | 200 |
6 | 轮胎配置 Wheel type | 聚胺脂实心胎 Polyurethane solid tire | ||
7 | 货叉尺寸(LxW)mm Fork size | 1150*175 | 1150*175 | 1150*175 |
8 | 货叉外宽mm Width of forks | 550 | 685 | 685 |
9 | 全长mm Overall length | 1727(无踏板) | 1907(踏板收起时) | 1987(踏板收起时) |
10 | 全宽mm Overall width | 730 | 730 | 850 |
11 | 货叉最小离地高度mm Lowered fork height | 85 | 85 | 85 |
12 | 刹车 Brake | 电磁式Electromagnetic | ||
13 | 转弯半径mm Outside turning radius | 1556 | 1736 | 1788 |
14 | 前轮至叉端距mm Load wheel to fork tip | 165 | 165 | 165 |
15 | 最大行走速度km/h Max. walking speeds | 4.6/5.6 | ||
16 | 爬坡能力%(满载/空载) Grade abitity | 6/10 | 6/10 | 8 |
17 | 总重Kg Total weight( with battery) | ~560 | ~600 | ~640 |
19 | 驱动轮mm Driving wheel | Φ215*75 | Φ215*75 | Φ215*75 |
20 | 前轮mm Front wheel | Φ80*70 | Φ80*70 | Φ80*70 |
21 | 平衡轮mm Balance wheel | Φ100*40 | Φ100*40 | Φ150*50 |
22 | 蓄电池 电压/容量V/Ah Battery | 24/140 | 24/210 | 24/210 |
23 | 充电机 V/A Charger | 24/20 | 24/30 | 24/30 |
24 | 驱动马达 Kw Driving motor | 1.2 | 1.2 | 1.2 |
25 | 起升马达 Kw Lifting motor | 1.2 | 1.2 | 2.0 |

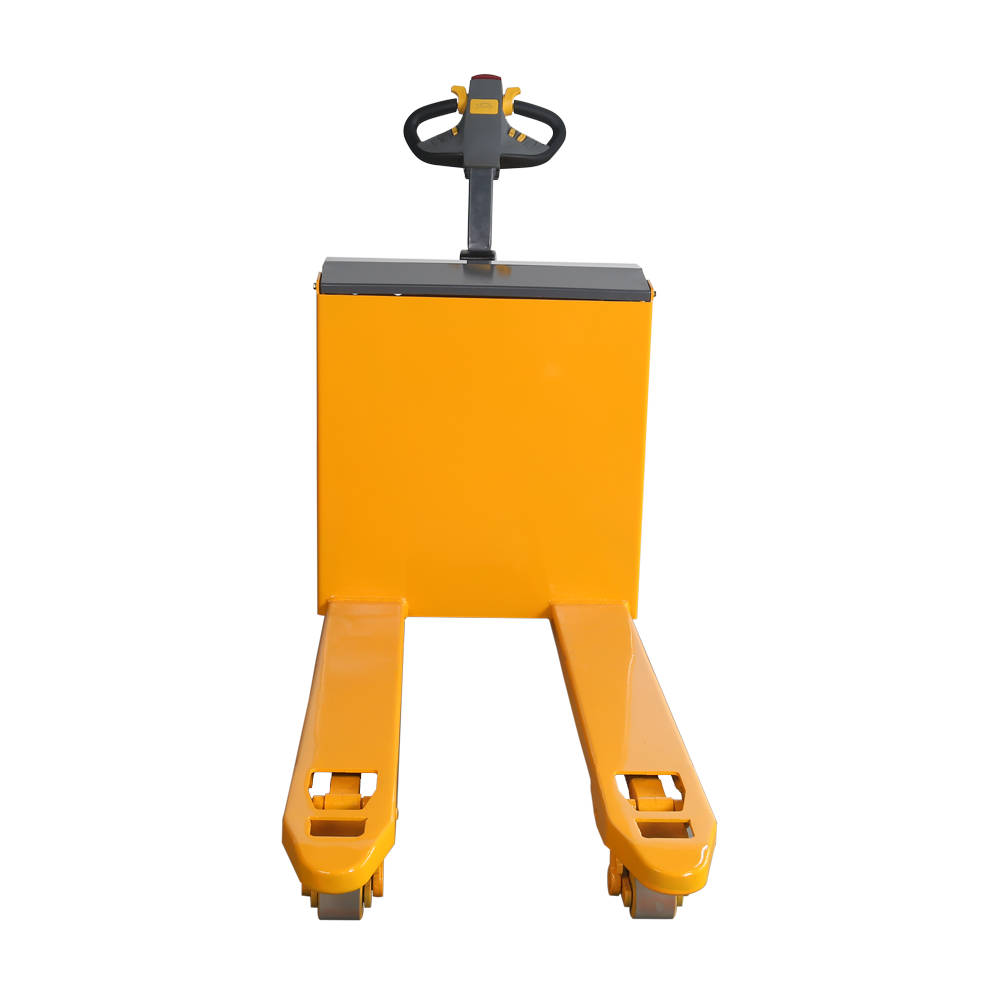

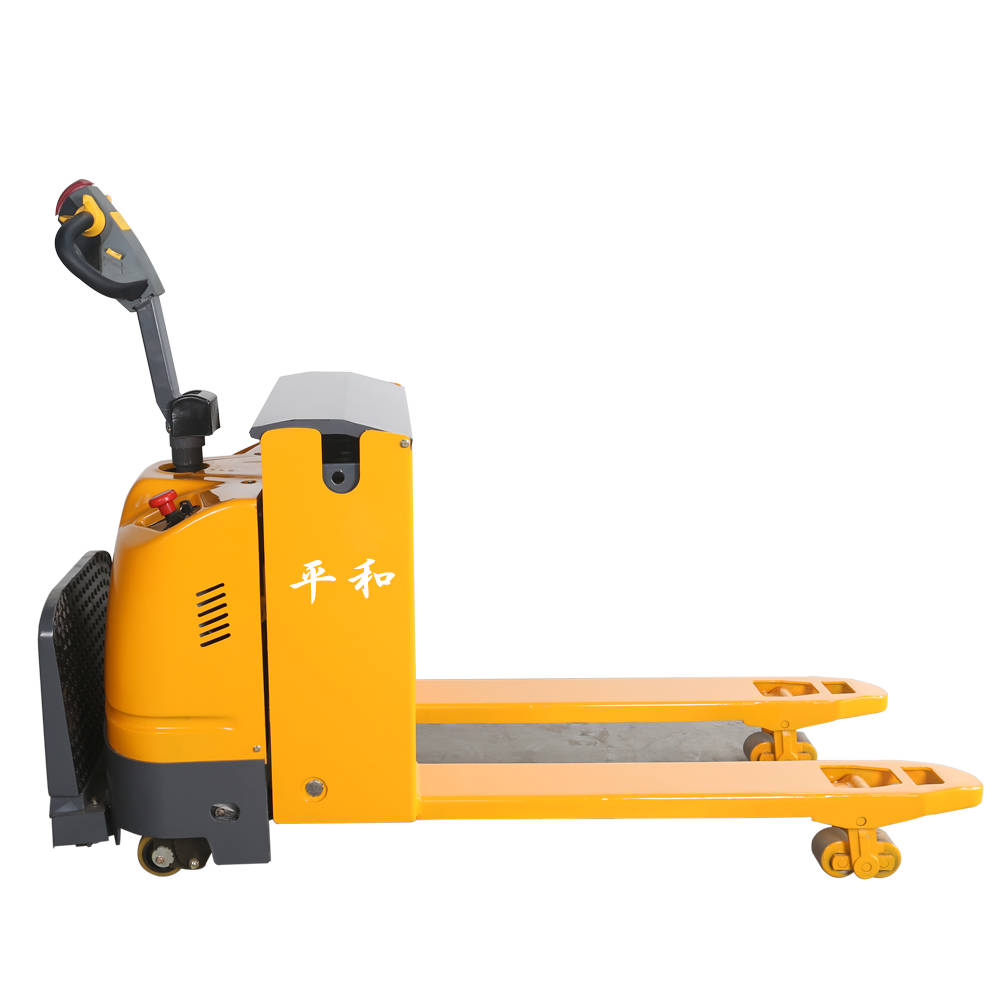

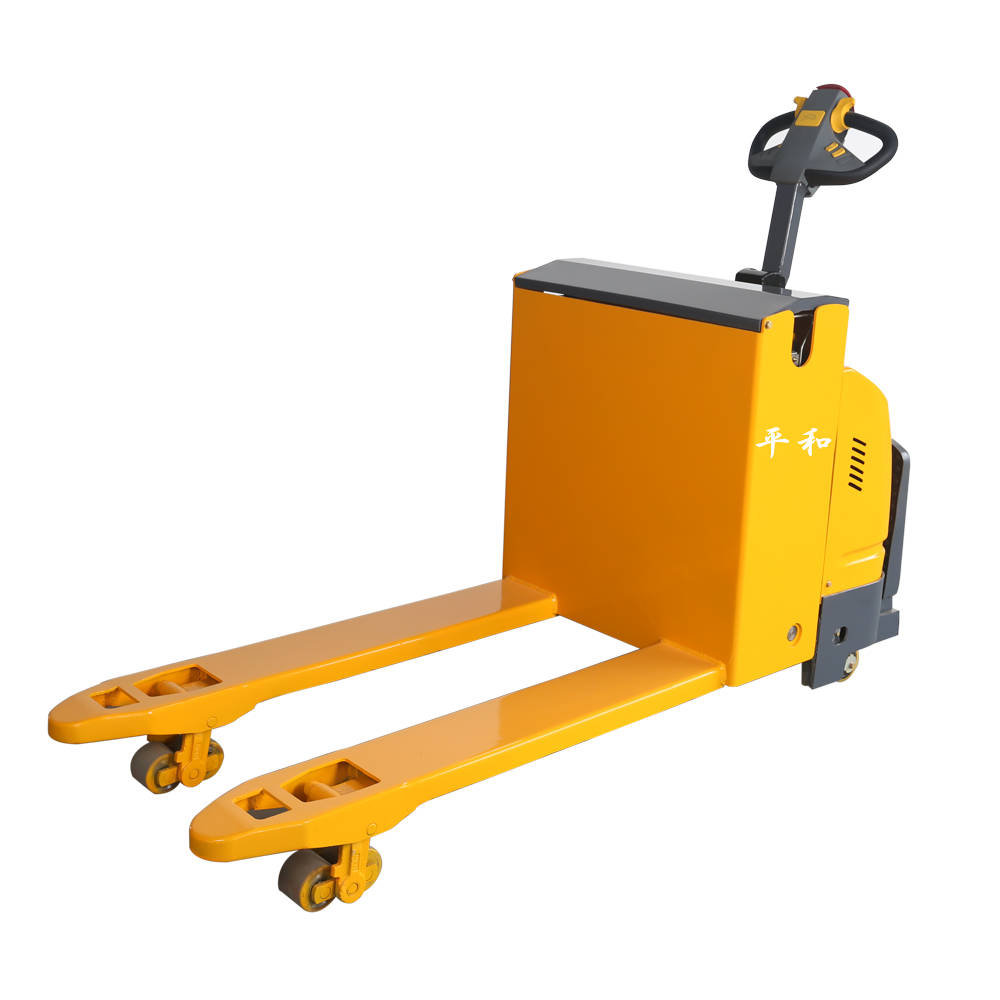

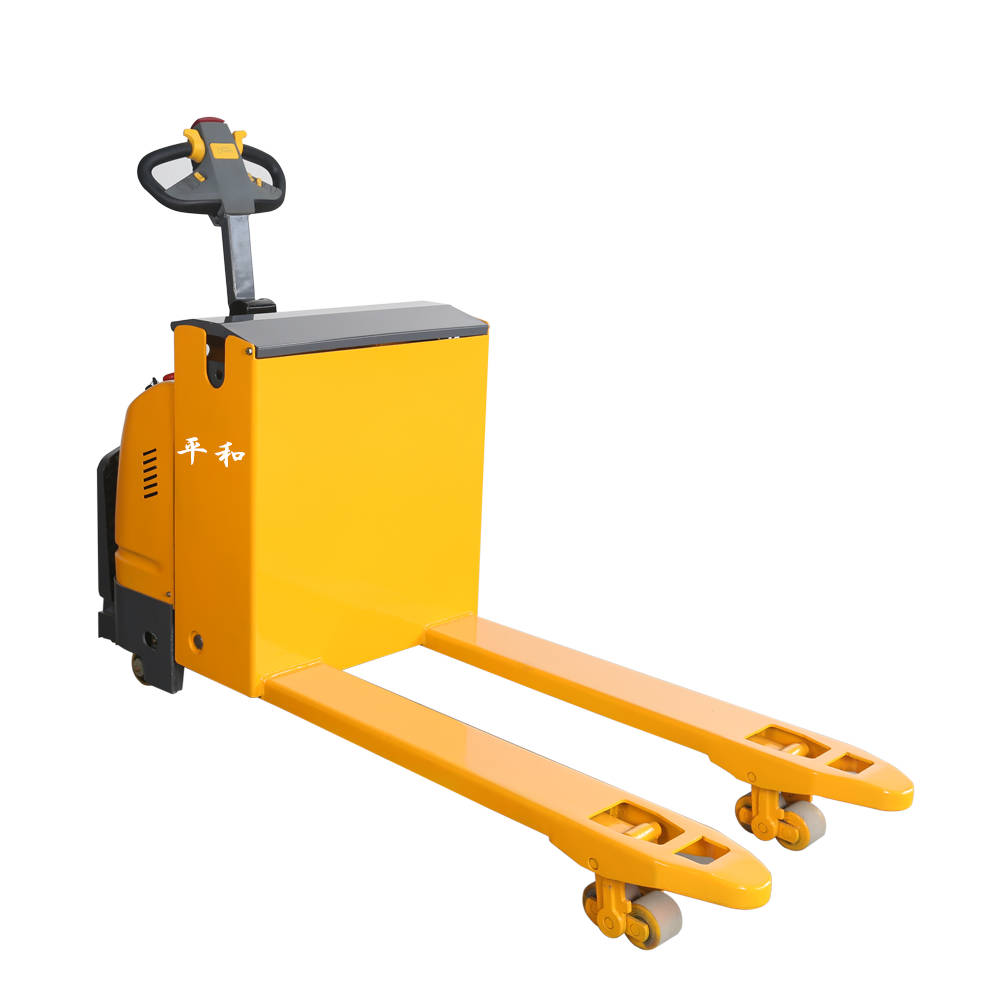

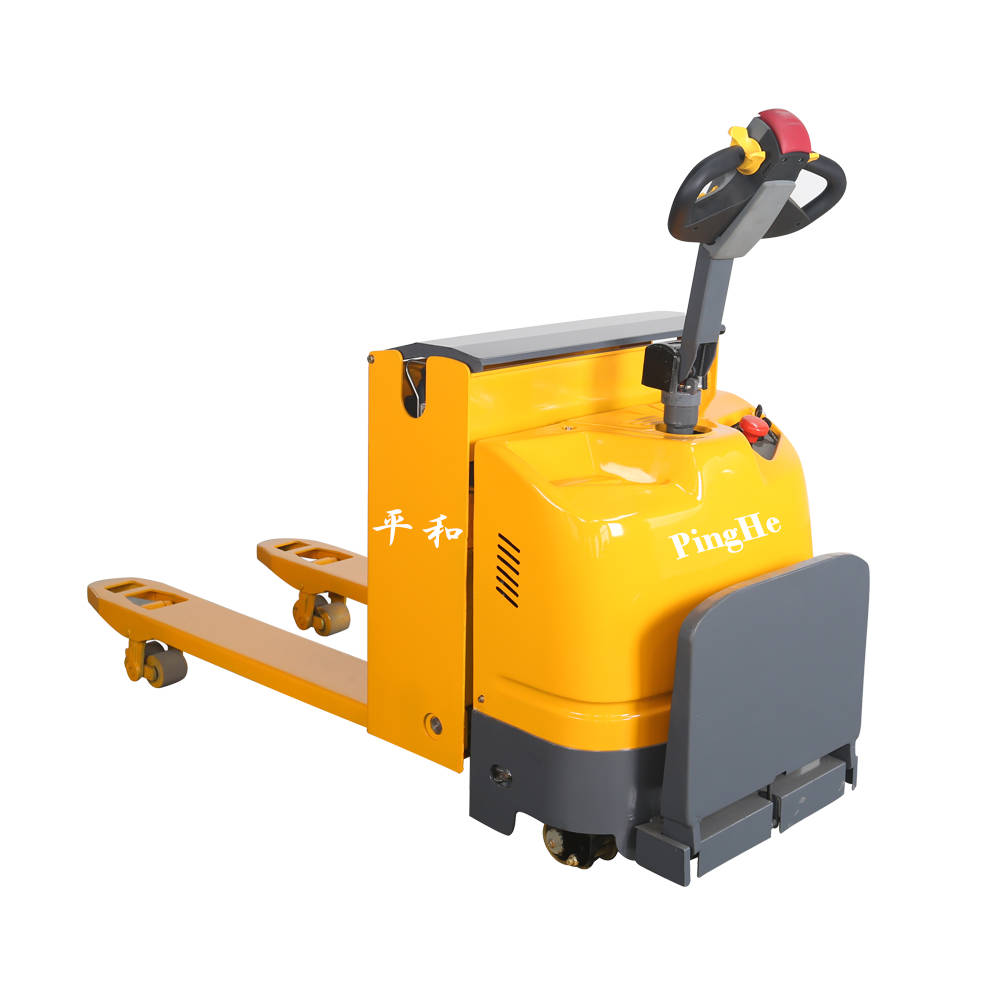

平和2.0/3.0全电动搬运车
电动托盘搬运系列
平和2.0/3.0全电动搬运车,独特的驱动减振技术,驱动系统采用独立悬挂式结构,随路面起伏驱动系统自动沉降,保证了驱动轮始终与地面接触,不易出现打滑现象,使得平和搬运车通过性能更...
