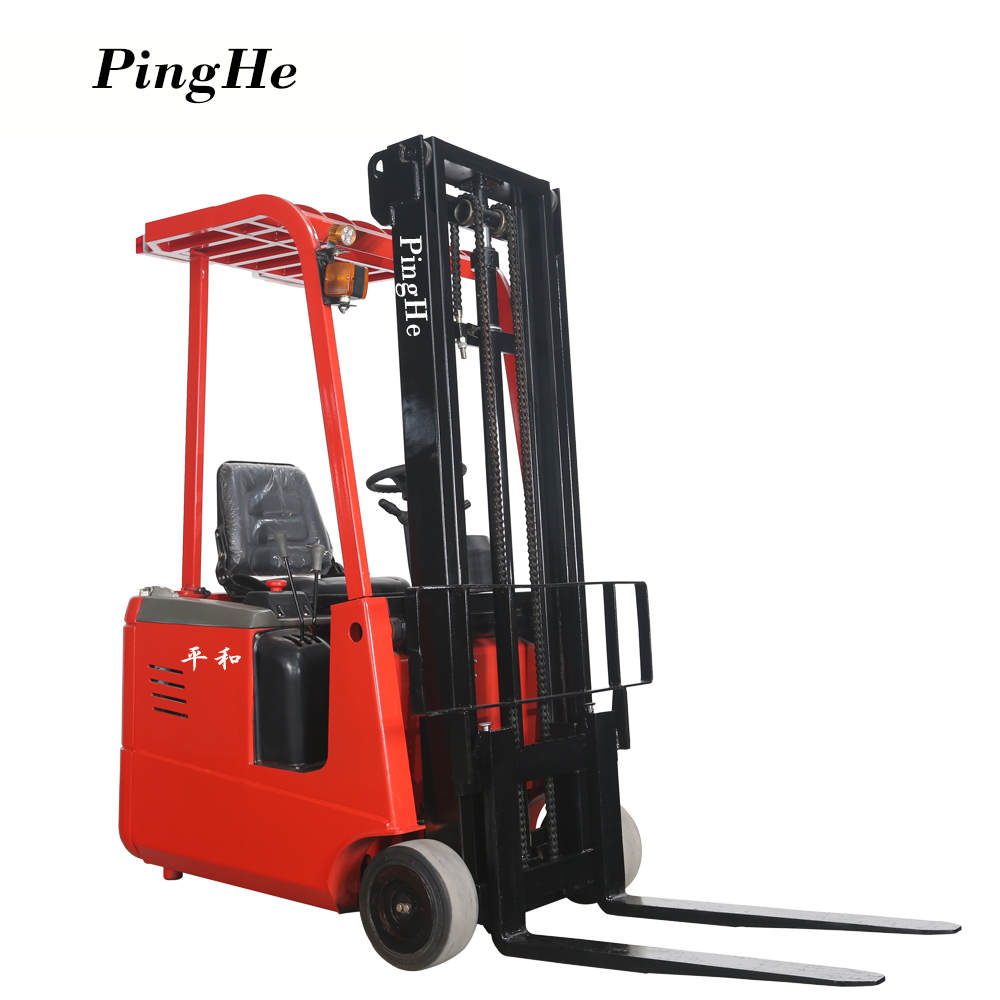

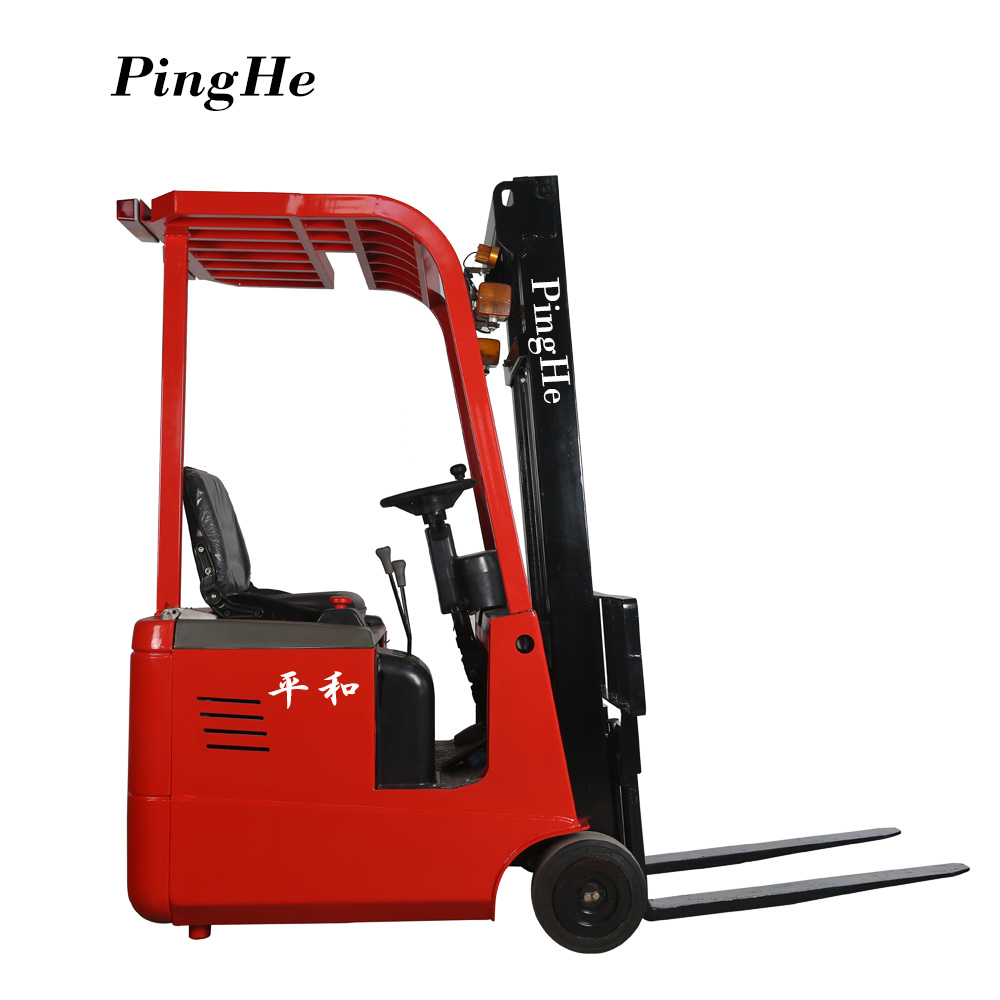

FKA系列 三支点平衡重式蓄电池叉车24V
3-wheel electric forklift truck

1	名称                            Description	三支点平衡重式蓄电池叉车
2	型号                                 Model	FKA10-30	FKA15-30
3	最大起升重量Kg               Load capacity	1000	15
4	载荷中心mm                    Load center	500	500
5	最大起升高度mm           Max. lifting height	3000	3000
6	门架倾角deg     Tilting angle (forward- backward)	2/4	2/4
7	自由起升高度mm                    Free lift	0	0
8	轮胎配置                        Wheel type	聚胺脂实心胎 Polyurethane solid tire
9	货叉尺寸（LxWxT）mm             Fork size	920*100*35	920*100*35
10	货叉调节范围mm                Fork spread	200-548	200-658
11	全长（不含货叉）mm Overall length(without forks)	1345	1450
12	全宽mm                       Overall width	915	1055
13	门架闭合时高度mm Overall height mast closed	2065	2065
14	货叉起升时最大高度（不含挡货架）mm  Overall height fork raised(without backrest)	3545	3545
15	护顶架高度mm        Overhead guard height	1965	1965
16	转弯半径mm           Outside turning radius	1170	1275
17	最小堆垛通道宽度mm    Min. intersecting aisle	2870	2975
18	最大行驶速度Km/h       Max. walking speeds	7.2	7.0
19	上升速度(满载/空载) mm/s  Lifting speeds (Loaded/ Unloaded)	125/170	125/170
20	爬坡能力%                     Grade abitity	8/10	8/10
21	总重（含蓄电池）Kg    Total weight( with battery)	1950	2170
22	前轮轮胎                          Front tire	Φ305*127	Φ305*140
23	后轮轮胎                          Rear tire	Φ267*127	Φ267*127
24	轴距(可变式) mm     Wheel base（adjustable）	880-961	950-1031
25	最小离地间隙mm        Min. under-clearance	90	90
26	行车制动                      Service brake	脚踏式/液压 hydraulic
27	停车制动                      Parking brake	手动机械 mechanical
28	蓄电池  电压/容量V/Ah              Battery	24/360	24/480
29	充电机V/A                         Charger	24/40	24/50
30	驱动马达Kw                   Driving motor	2.8	2.8
31	起升马达Kw                    Lifting motor	3.5	3.5
32	转向马达Kw                  Steering motor	0.75	0.75

●此车型最大载重量1500Kg，最大提升高度4500mm（双门架）。
Max loading capacity 1500kg, Max lifting height 4500mm(double mast)
