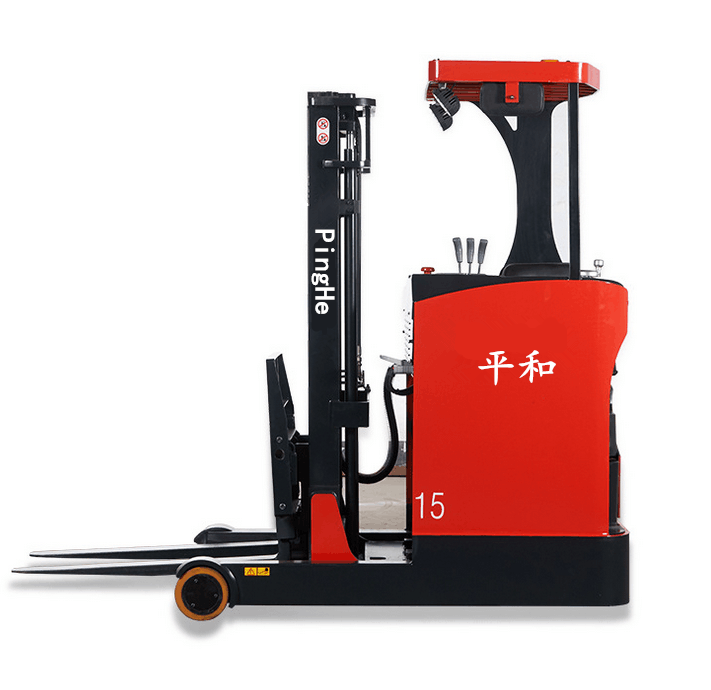

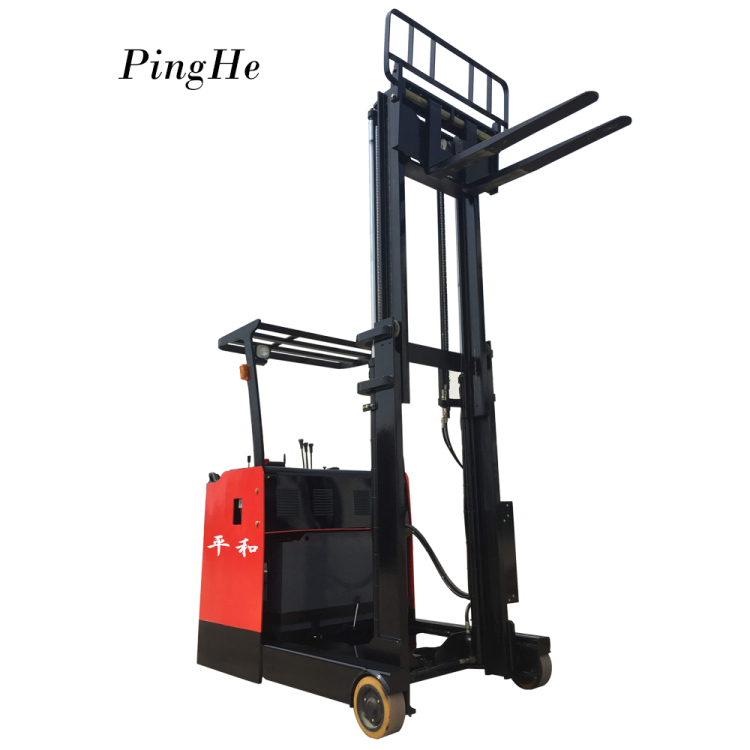

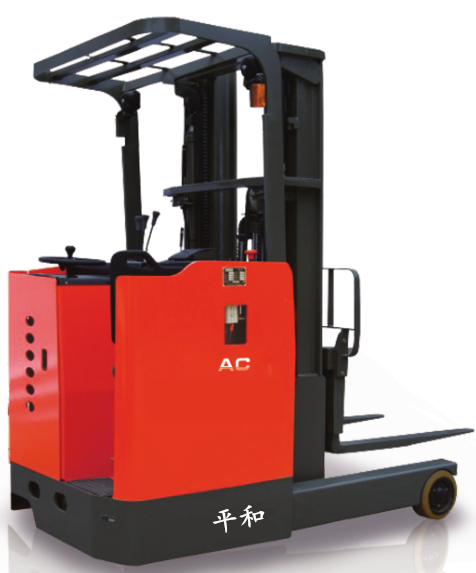

FD 系列 前移式蓄电池叉车48V
Electric reach truck

1	名称                             Description	前移式蓄电池叉车
2	型号                                 Model	FD15-30	FD20-30	FD25-30
3	最大起升重量Kg                Load capacity	1500	2000	2500
4	载荷中心mm                     Load center	500	500	500
5	最大起升高度mm            Max. lifting height	3000	3000	3000
6	门架倾角deg      Tilting angle (forward- backward)	3/5	3/5	3/5
7	轮胎配置                         Wheel type	聚胺脂实心胎 Polyurethane solid tire
8	门架前移距离mm       Mast forwarding length	560	685	685
9	货叉尺寸（LxWxT）mm              Fork size	1070x100x35	1070x100x45	1070x100x45
10	货叉调节范围mm                 Fork spread	220-762	247-780	247-780
11	全长（含货叉）mm      Overall length(with forks)	2264	2454	2454
12	全宽mm                        Overall width	1098	1258	1258
13	门架闭合时高度mm  Overall height mast closed	2080	2100	2100
14	货叉起升时最大高度（含挡货架）mm Overall height fork raised(with backrest)	3885	3900	3900
15	护顶架高度mm         Overhead guard height	2320	2320	2320
16	转弯半径（外侧）mm     Outside turning radius	1615	1965	1965
17	最小堆垛通道宽度（1000*1000托盘）mm Min. intersecting aisle	2608	2879	2879
18	最大行驶速度(满载/空载) km/h Max. walking speeds	7.5/8.5	7.0/8.0	7.0/8.0
19	上升速度(满载/空载) mm/s Lifting speeds (Loaded/ Unloaded)	117/243	110/243	110/243
20	爬坡能力%                      Grade abitity	≤10	≤10	≤10
21	总重（含蓄电池）Kg     Total weight( with battery)	2300	2600	2600
22	驱动轮mm                     Driving wheel	Φ343*108	Φ343*108	Φ343*108
23	前轮mm                         Front wheel	Φ267*114	Φ267*114	Φ267*114
24	平衡轮mm                    Balance wheel	Φ180*76	Φ180*76	Φ180*76
25	最小离地间隙mm         Min. under-clearance	80	80	80
26	行车制动                       Service brake	机械式mechanical
27	停车制动                       Parking brake	机械式 mechanical
28	蓄电池  电压/容量   V/Ah             Battery	48/300	48/400	48/400
29	充电机   V/A                        Charger	48/40	48/50	48/50
30	驱动马达Kw                    Driving motor	5.5(AC)	5.5(AC)	5.5(AC)
31	起升马达Kw                     Lifting motor	6.3	7.5	7.5
32	行走调速方式                  Control system	MOSFET高频场效应晶体管控制器

●可选属具：侧移器、平抱夹、纸卷夹、圆桶夹、回转货叉、串杆、起重臂、吊钩、加宽货叉架、货叉加长套等。
Option: side shifter, flat clamp, paper roll clamp,  drum clamp, turning fork, reel , jib, lifting hook , widen backrest , lengthened fork.
