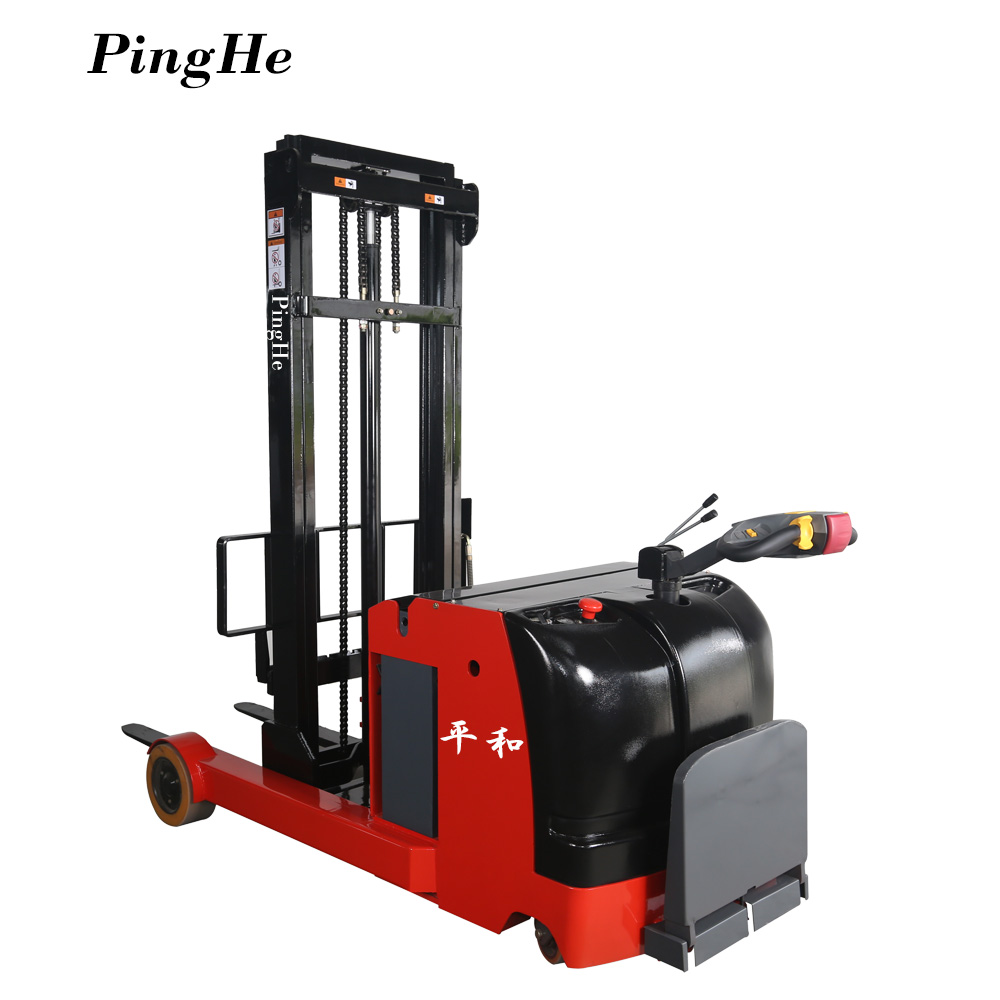

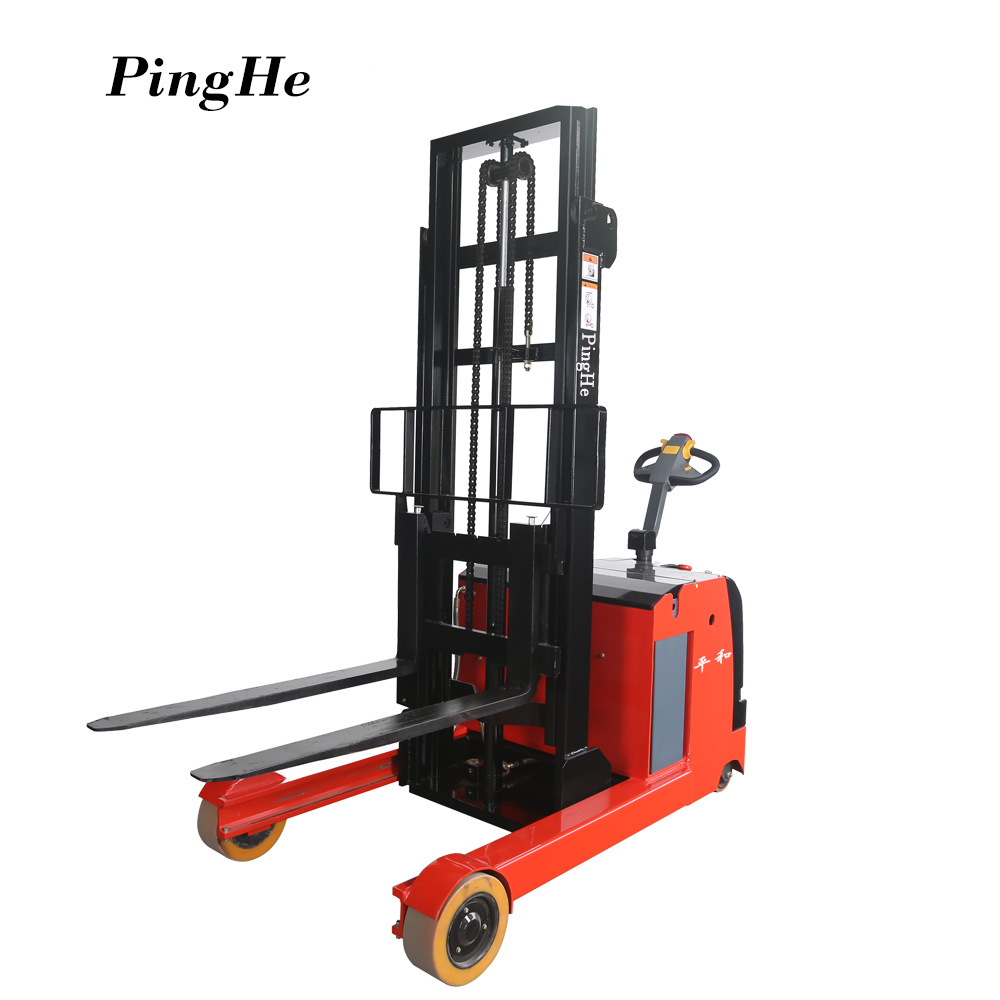

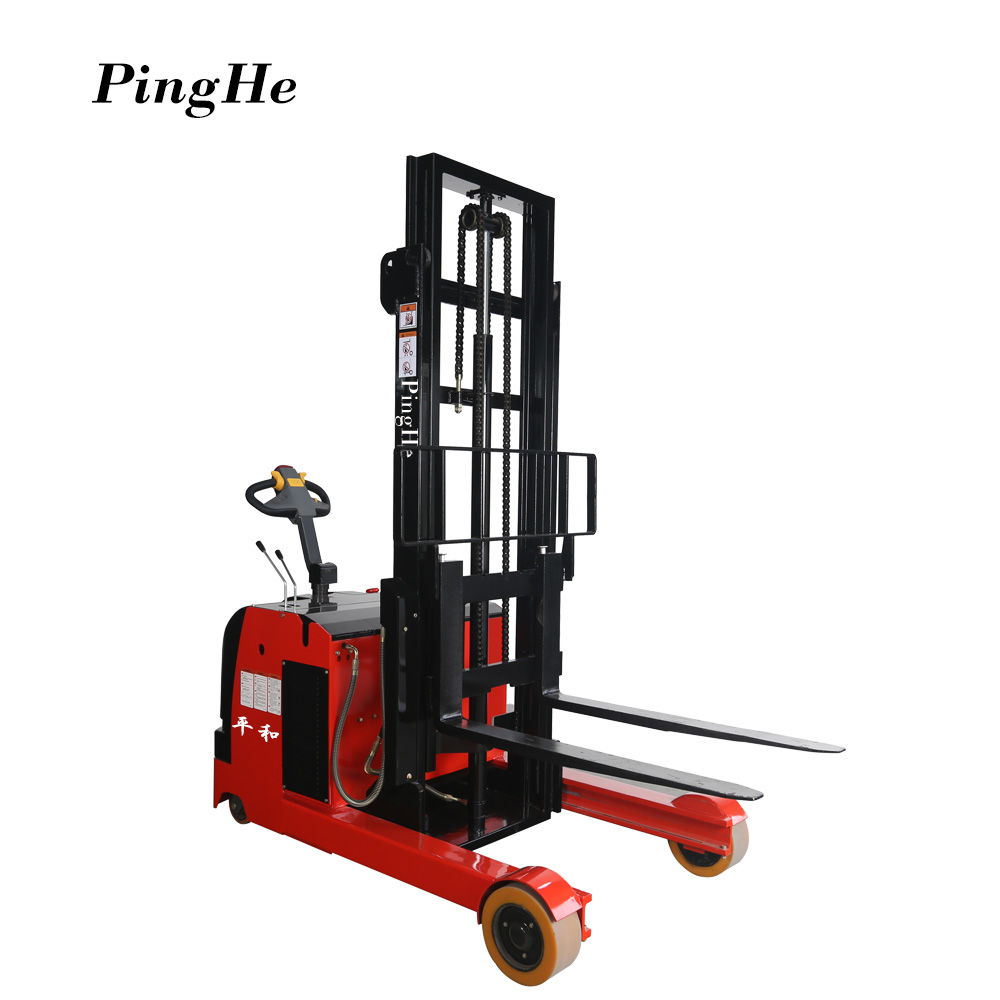

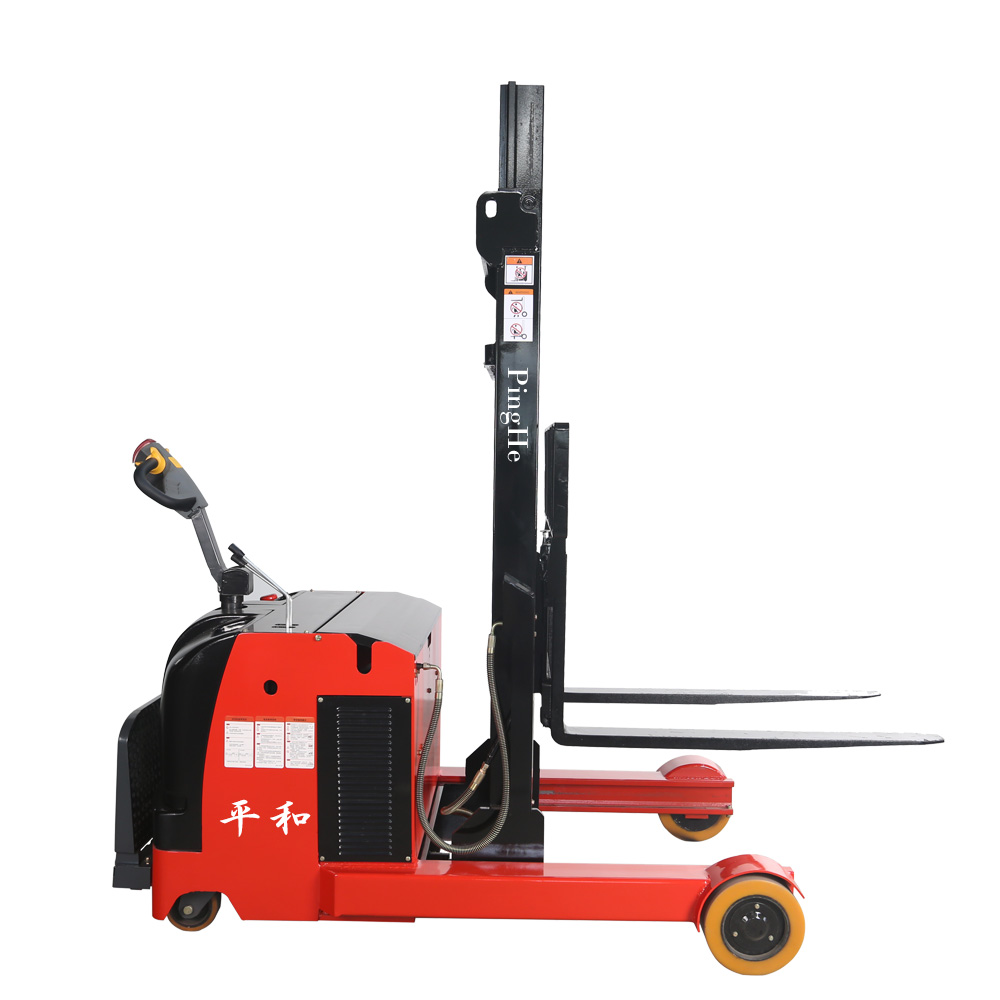

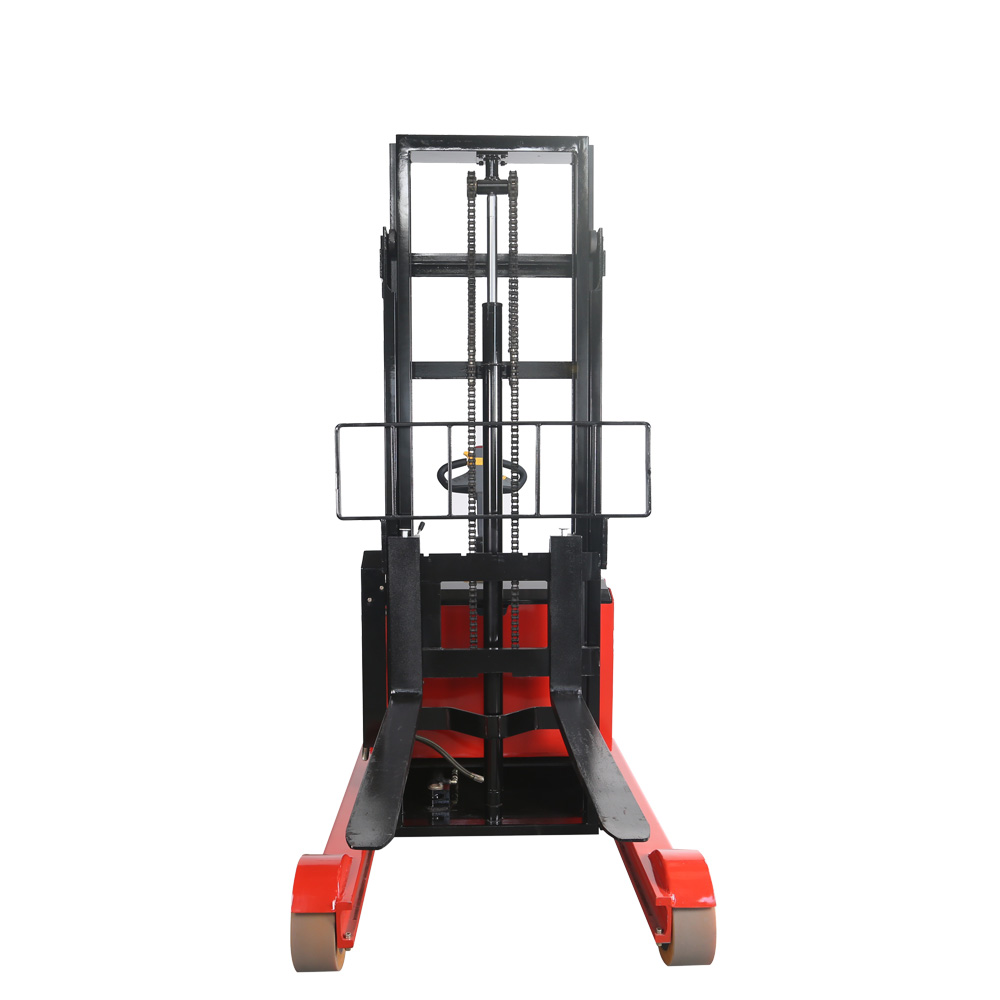

FA系列 前移式蓄电池叉车24V
Electric reach truck


1	名称                       Description	前移式蓄电池叉车
2	型号                           Model	FA10 -16	FA10 -25	FA10-30	FA10-35	FA15-25	FA15-30		FA20-16
3	最大起升重量Kg          Load capacity	1000	1000	1000	1000	1500	1500		2000
4	载荷中心mm               Load center	500	500	500	500	500	500		500
5	最大起升高度mm      Max. lifting height	1600	2500	3000	3500	2500	3000		1600
6	轮胎配置                   Wheel type	聚胺脂实心胎 Polyurethane solid tire
7	门架前移距离mm  Mast forwarding length	550	550	550	550	650	650	700
8	货叉尺寸（LxW）mm          Fork size	1070*100*35				1070*100*35		1070*100*40
9	货叉调节范围mm           Fork spread	220-660				220-660		260-660
10	全长（含货叉,踏板收起）mm Overall length	2755	2755	2755	2755	2951	2951	3065
11	全宽mm                  Overall width	1090	1090	1090	1090	1090	1090	1090
12	门架闭合时高度mm Overall height mast closed	2140	1837	2087	2337	1837	2087	2140
13	货叉起升时最大高度（含挡货架）mm  Overall height fork raised(with backrest)	2455	3355	3855	4355	3355	3855	2455
14	转弯半径（外侧）mm Outside turning radius	1635	1635	1635	1635	1800	1800	1930
15	前轮至叉端距mm  Front wheel to fork tip	370	370	370	370	510	510	515
16	最大行驶速度Km/h  Max. walking speeds	4.0/5.8	4.0/5.8	4.0/5.8	4.0/5.8	4.0/5.8
17	最小堆垛通道宽度（1000*1000托盘）mm 踏板收起时Min. intersecting aisle	2600				2750		2895
18	踏板长mm                Pedal length	500	500	500	500	500	500	500
19	爬坡能力%                Grade abitity	8/10				5~8	5~8	3~5
20	总重Kg         Total weight( with battery)	~1705	~1815	~1835	~1855	~1835	~1845	~1738
21	驱动轮mm               Driving wheel	Φ215*75
22	前轮mm                   Front wheel	Φ267*114
23	平衡轮mm              Balance wheel	Φ150*50
24	蓄电池  电压/容量V/Ah         Battery	24/210
25	充电机  V/A                   Charger	24/30
26	驱动马达 Kw             Driving motor	1.5				1.5	1.5		1.2
27	起升马达Kw               Lifting motor	2.0	2.0	2.0	2.0	2/3.5	2/3.5		3.5
28	行走调速方式            Control system	MOSFET高频场效应晶体管控制器

● 此车型最大载重量2000Kg，最大提升高度5000mm。高门架起升马达3.0Kw.
Max loading capacity:2000kg, Max.lifting height 5000mm.
● 选配门架前倾功能,AC交流驱动电机，进口蓄电池， 护栏。OPTIONS: Mast tilting , AC motor.
